/ 7W High Performance

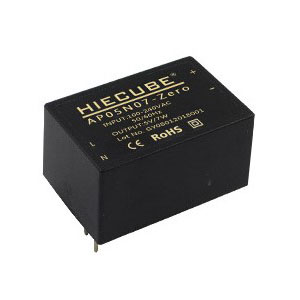

7W High Performance

?  Worldwide universal range AC and DC input
?  Built-in lightning protection surge,pulse group attenuator
?  Synchronous rectified, differential mode filtering, common mode filtered output, Regulated, low ripple noise output
?  Small size: 37*28.5*19.5mm
?  Protection type: overload protection, short circuit protection, overheat protection
?  Built-in EMC circuit Meets EN55032 ClassB rating
?  No need for peripheral circuit design, PCB soldering installation
?  CE/RoHS certified

? Click on the ACDC power module below to learn more

系列標(biāo)題 功率(W) 輸入電壓(VAC/DC) 輸出電壓
(VDC)		 輸出電路 隔離耐壓(VAC) 封裝形狀 封裝尺寸
(mm)		 PDF
AP05N07-Zero 7 85~265VAC/100~370VDC 5 Single output 3000 DIP 37*28.5*19.5mm
AP06N07-Zero 7 85~265VAC/100~370VDC 6 Single output 3000 DIP 37*28.5*19.5mm
AP09N07-Zero 7 85~265VAC/100~370VDC 9 Single output 3000 DIP 37*28.5*19.5mm
AP12N07-Zero 7 85~265VAC/100~370VDC 12 Single output 3000 DIP 37*28.5*19.5mm
AP15N07-Zero 7 85~265VAC/100~370VDC 15 Single output 3000 DIP 37*28.5*19.5mm
AP20N07-Zero 7 85~265VAC/100~370VDC 20 Single output 3000 DIP 37*28.5*19.5mm
AP24N07-Zero 7 85~265VAC/100~370VDC 24 Single output 3000 DIP 37*28.5*19.5mm
